PIC 12F629 Board v2

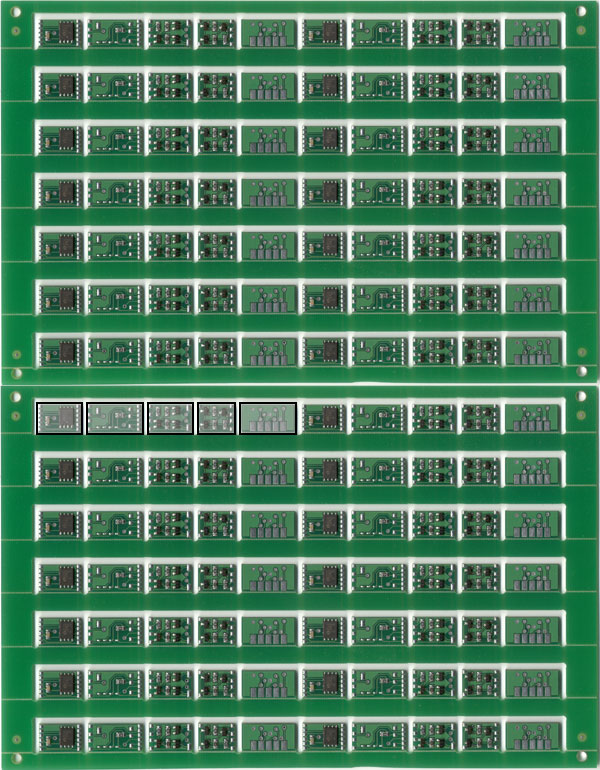

Panel of 70 small circuit boards. Includes 14 Microchip PIC 12F629 microcontrollers, and 14 sets of H-bridge boards.
- PIC12F629
- Microcontroller board

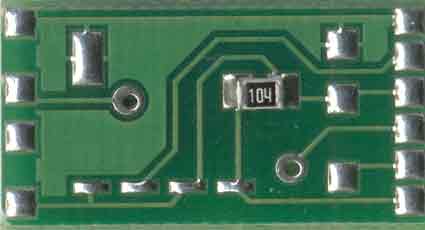

- Connection
- Connection board

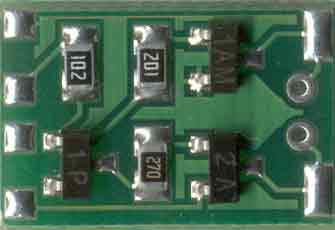

- H-Bridge1
- First half of the H-bridge
- H-Bridge2
- Other half of H-bridge

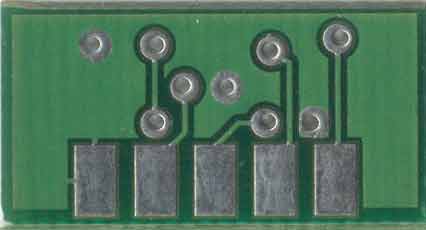

- Header
- Header board
These boards were originally intended as smart motor controllers for robotics projects.

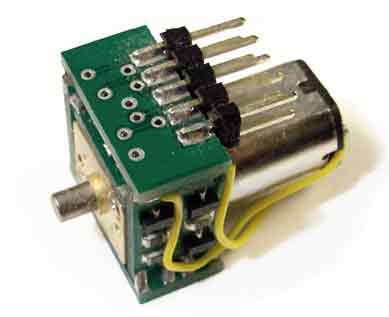

A set of boards would wrap around the gearbox of a small camera servo motor, see picture below.
Each motor controller consists of 5 boards.
Each panel has 14 sets of all 5 boards.
The schematic for the boards is as follows.
Thanks for looking!
price: $10 CAD per panel
Local pickup in downtown Toronto encouraged.
Shipping
to Canada $2.00 to the USA $3.00 to all other destinations $5.00
* I will consider alternate methods of payment and/or shipping on request, please Email me about it.
